Wilton SHR™ Strut & Threaded Rod Shear
Stock Number:
WL9-28910
Wilton WACF-3017 SHR Strut & Threaded Rod Shear (28910)
Manual

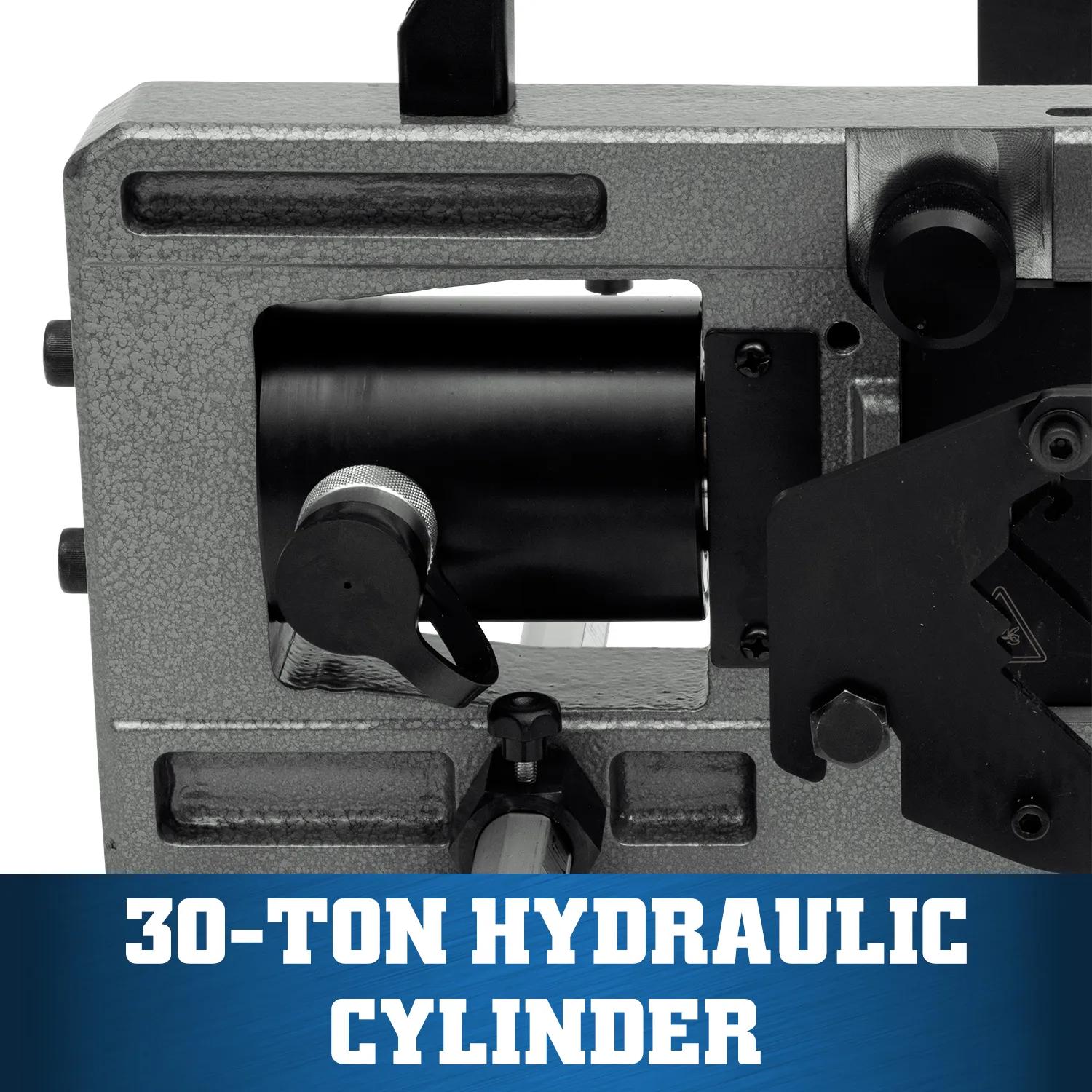

Experience the shear difference. The WILTON SHR™ is engineered to quickly cut strut, back-to-back strut, and threaded rod without the need for deburring or secondary operations. No mess and no spark mean increased safety and maximum productivity. The precision machined ductile iron frame and powerful 30-ton hydraulic cylinder deliver the industrial toughness and strength needed for any job.

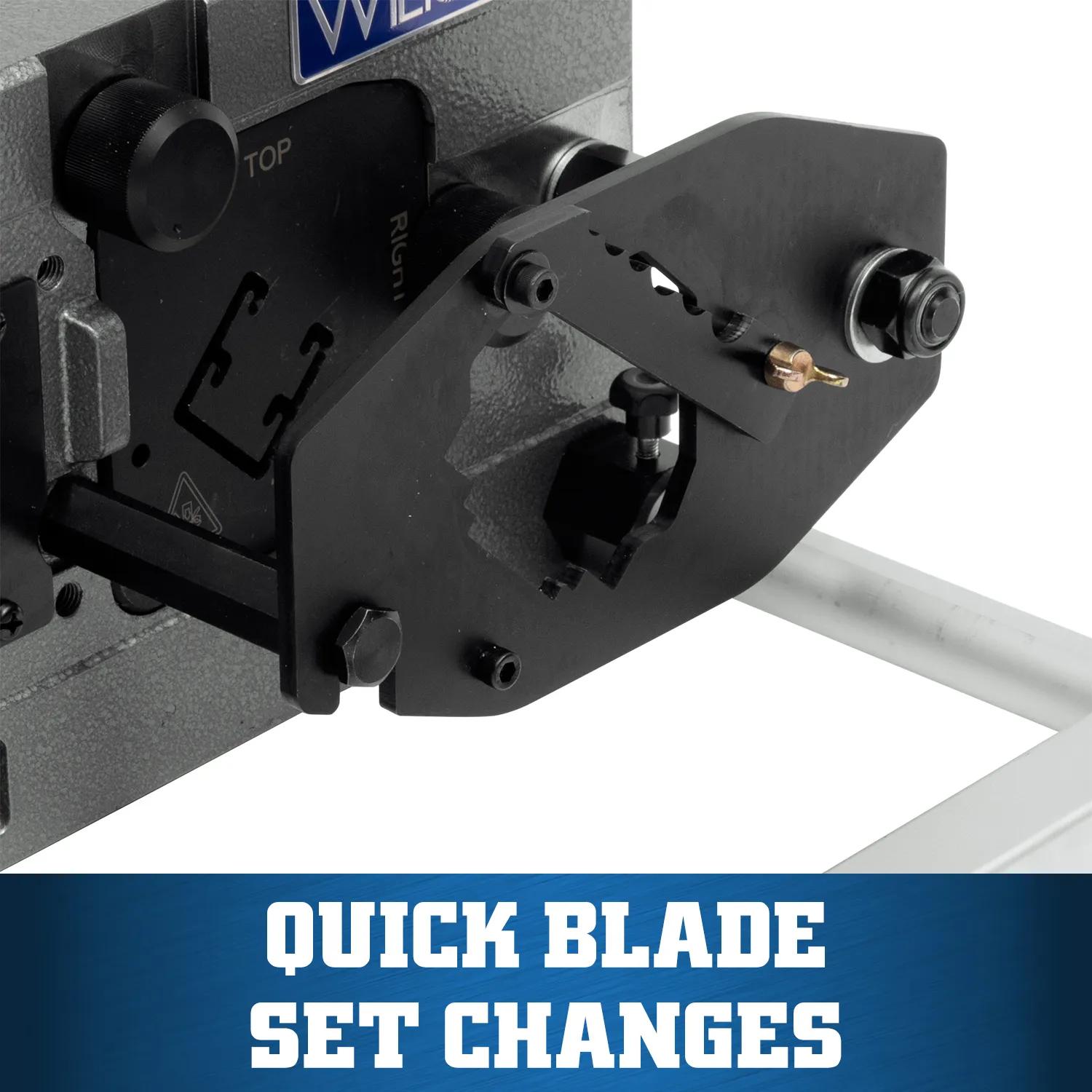

Blade sets available for shearing Back-to-Back, Deep Only and Cooper B-Line® 4D21 & 4D22 strut

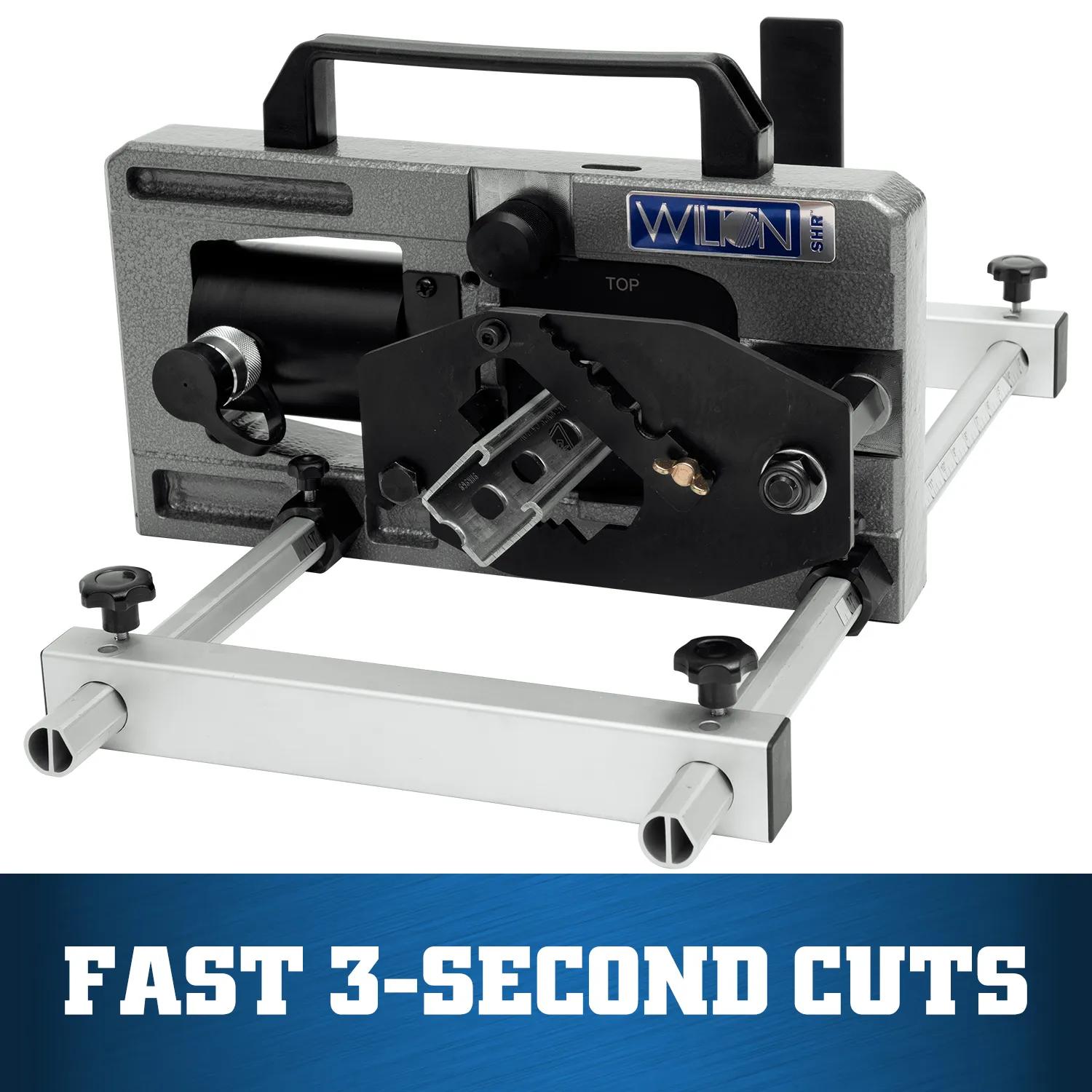

Fast 3 second cut with no need for deburring or other secondary operations

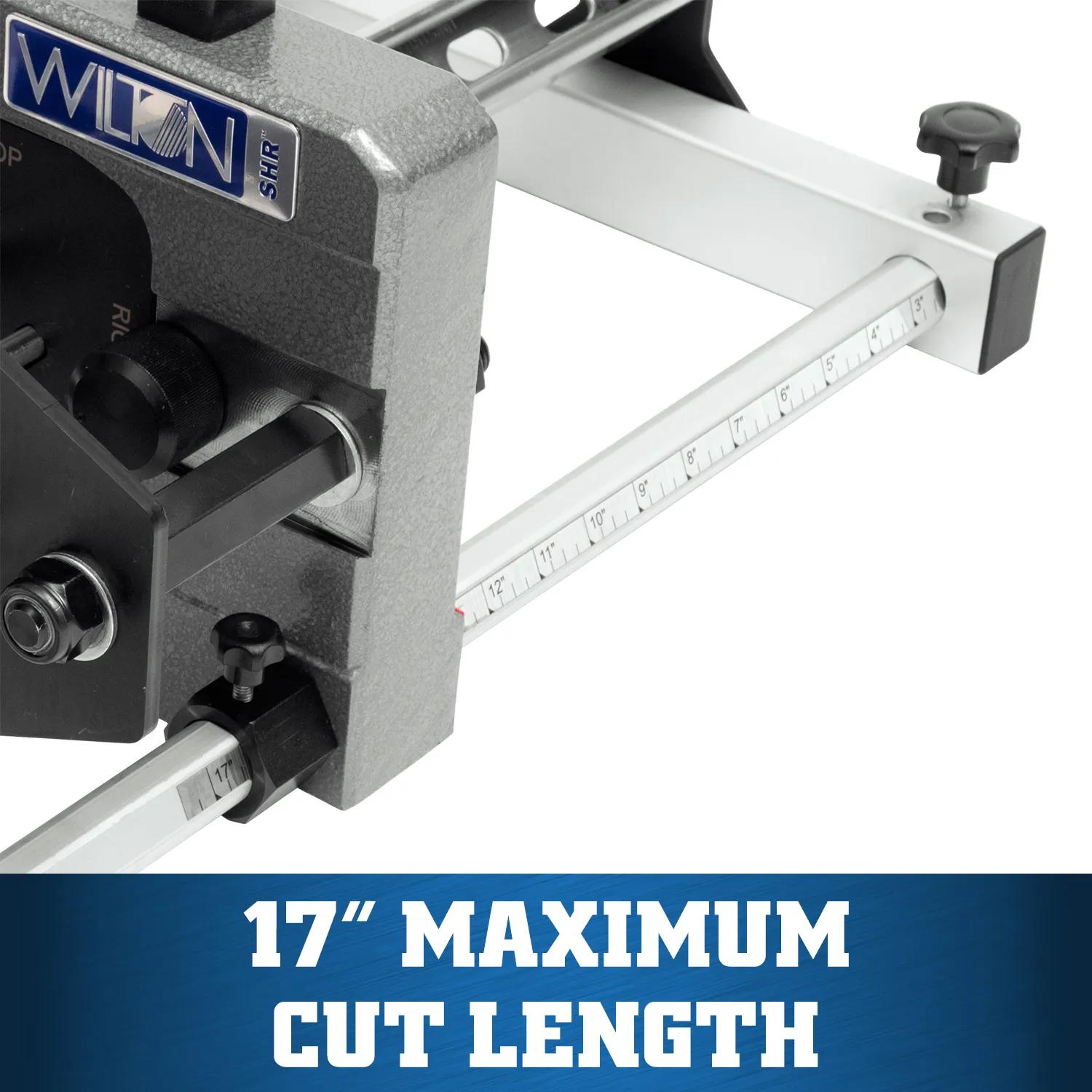

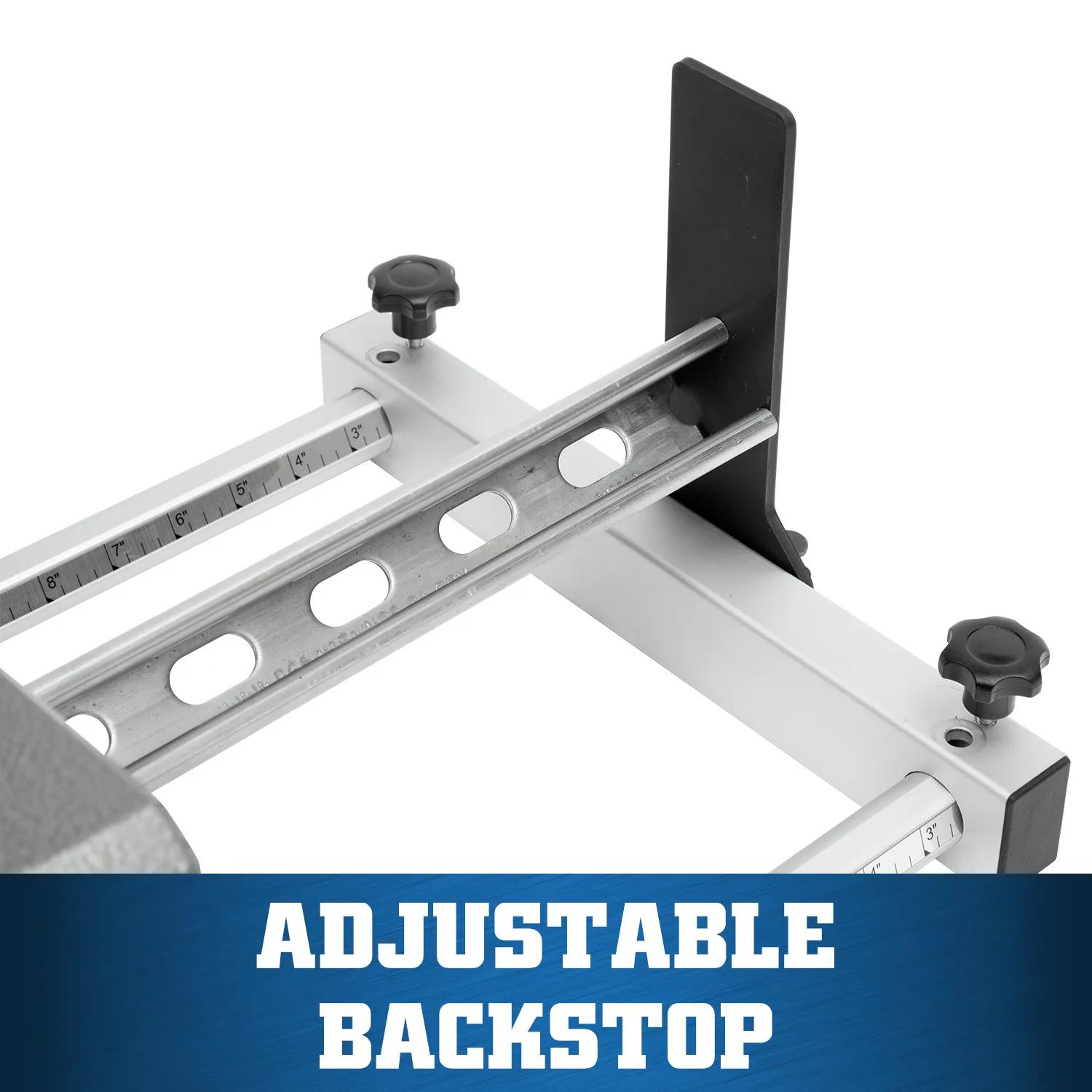

Includes two support rods with 17" measurement scale from backstop to cut

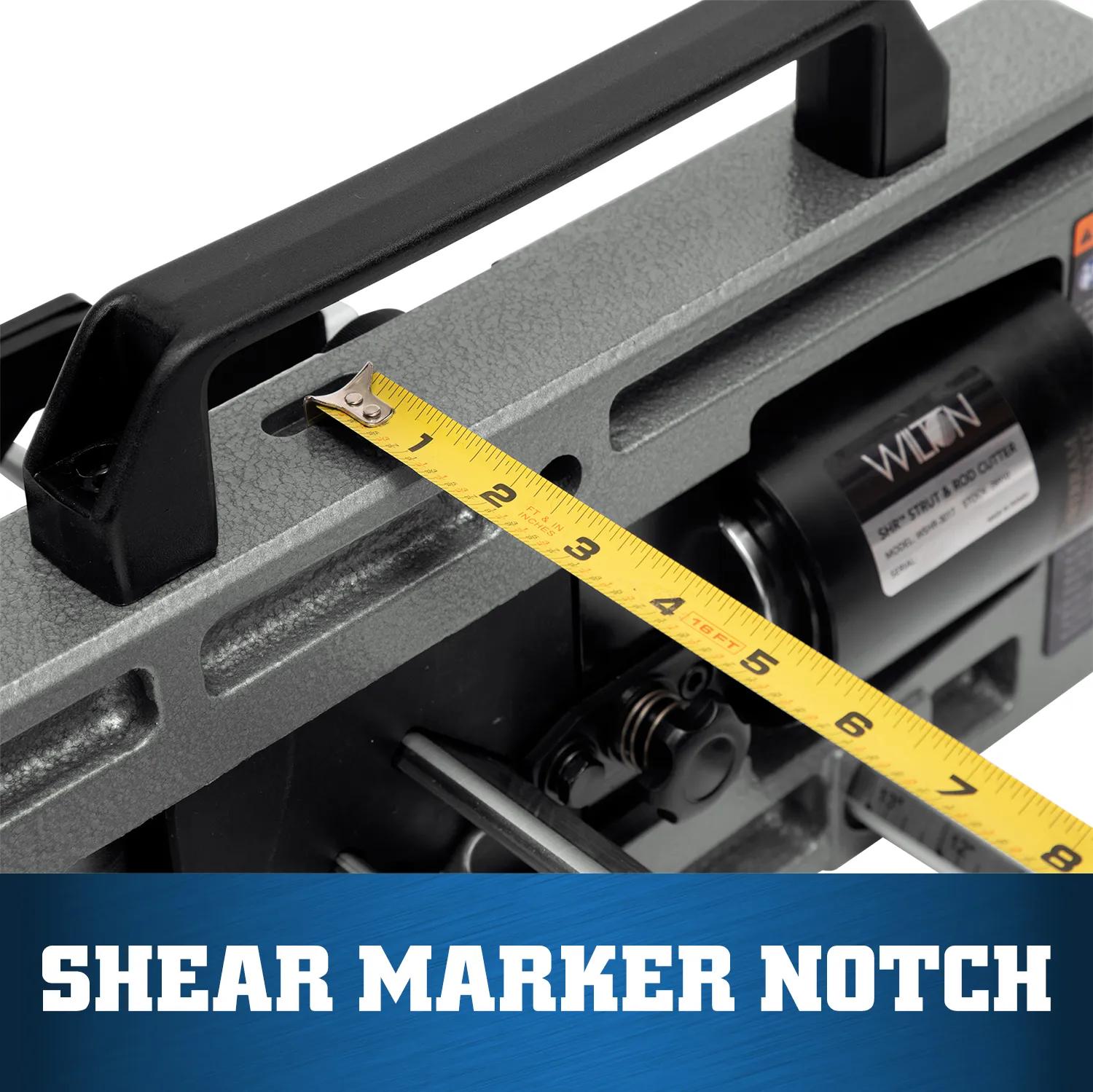

Measuring system to easily monitor cut lengths
Portable to move with you to wherever the work needs done
Produces clean straight cuts every time

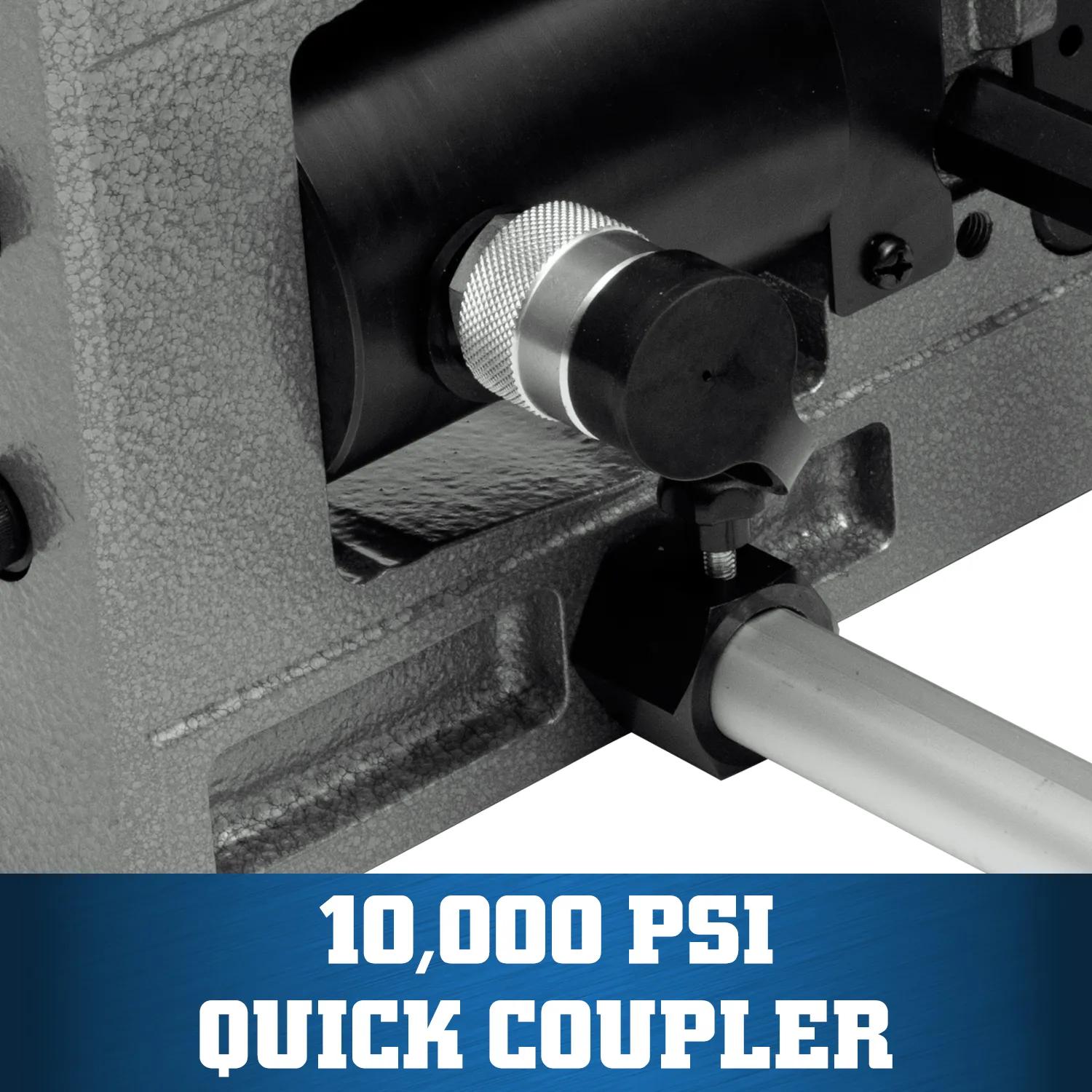

Quick coupler connects to any 10,000 psi power supply
Single blade set available for shearing 1/4", 3/8", 1/2" and 5/8" threaded rod
Standard blade set shears 1-5/8" and 7/8" strut
Support rods can be replaced with standard 1" O.D. pipe for longer shearing applications
| Stock Number | WL9-28910 |
|---|---|
| Cylinder (Tons) | 30 |
| Deep Strut (In.) | 1-5/8" x 1-5/8" |
| Maximum Capacity | 12 Gauge Mild Steel |
| Model Number | WACF-3017 |
| Prop 65 | Cancer and Reproductive Harm |
| Shallow Strut (In.) | 1-5/8" x 13/16" |
| Stroke (In.) | 1 |
| Width (In.) | 17-1/32 |
